Cheat Engine Tutorial

Cheat Engine

This blog its about the Cheat Engine Tutorial and other basic set up.

• First 8 challenges of the tutorial are just too much simple, refering with search for Float, Double, 4-Bytes, etc.

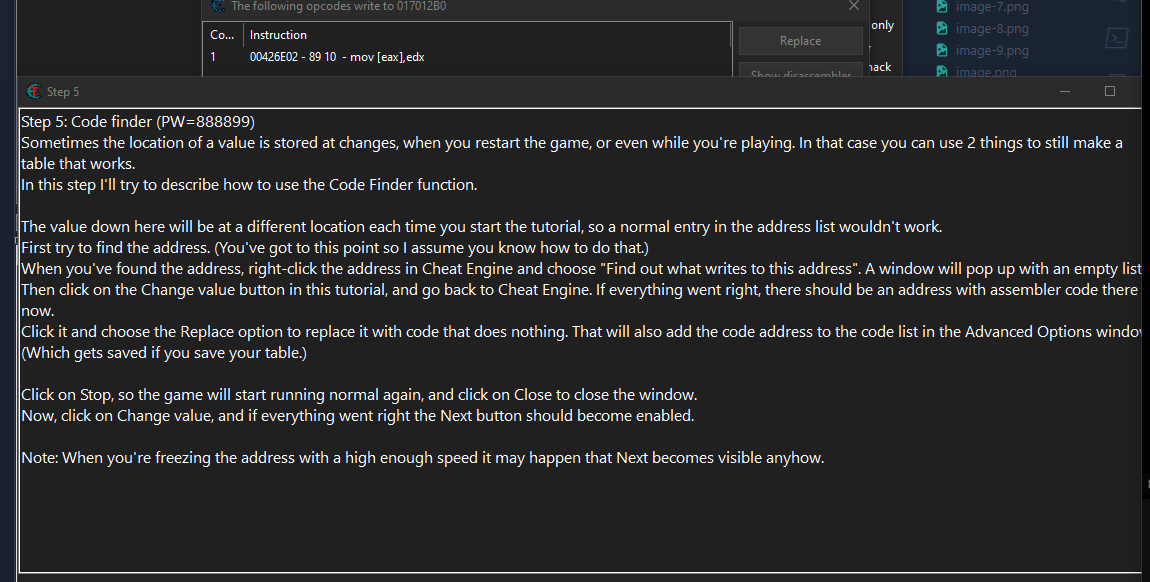

Code Finder

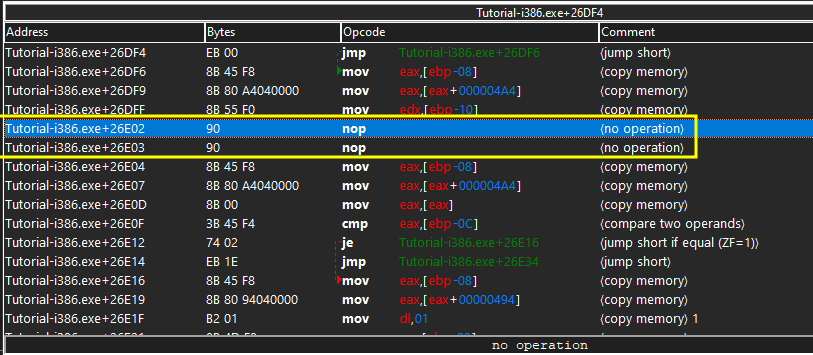

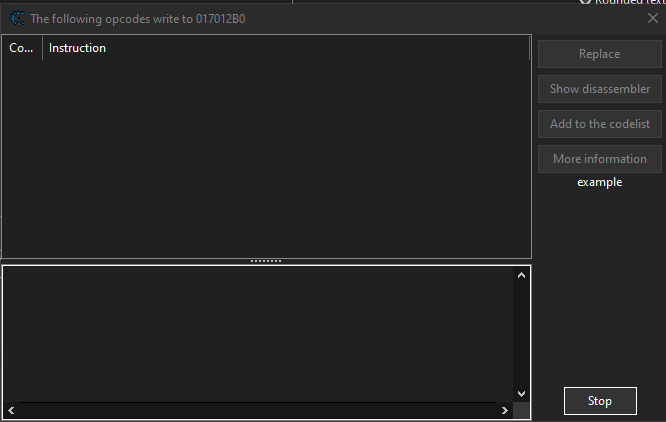

Its a value change every time the game restart, we need to go and look up what assembly code its used to modify that address. . Continue playing the game we see the instruction Go to source code, and change the instruction to NOPs.

Pointers

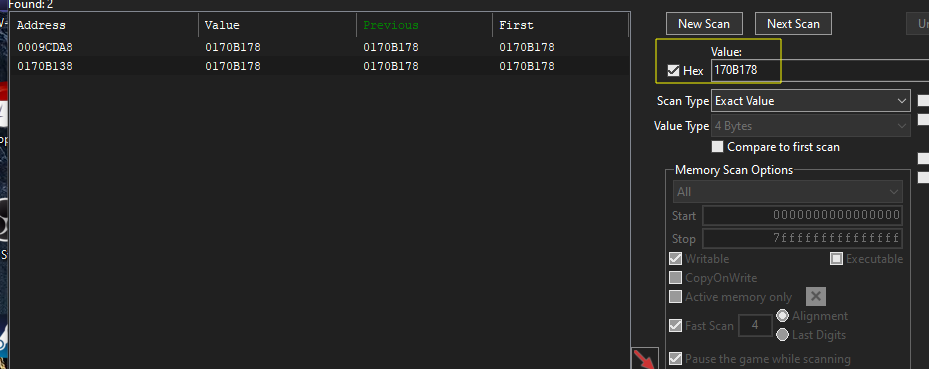

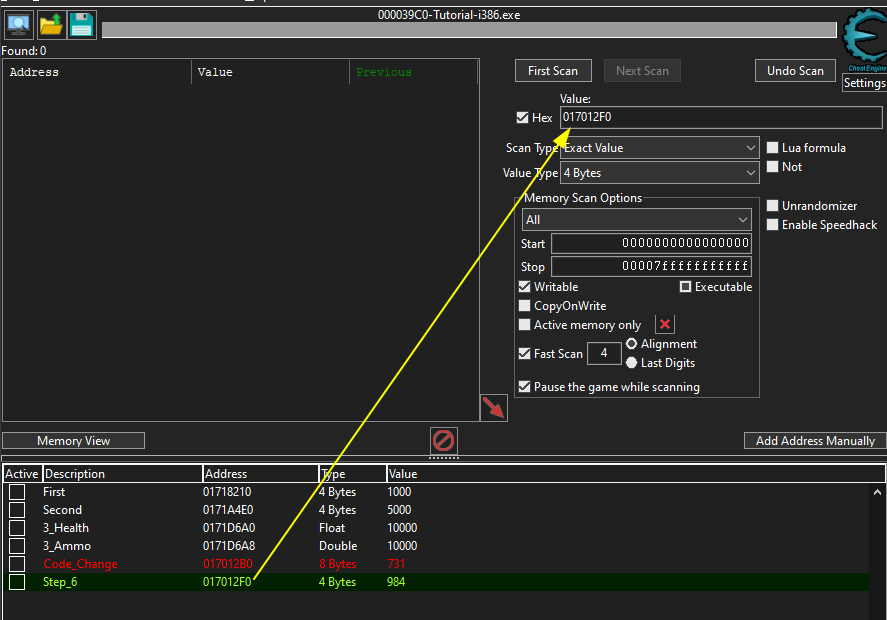

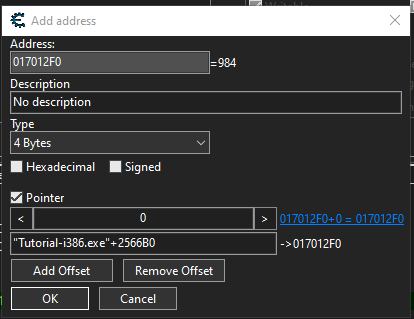

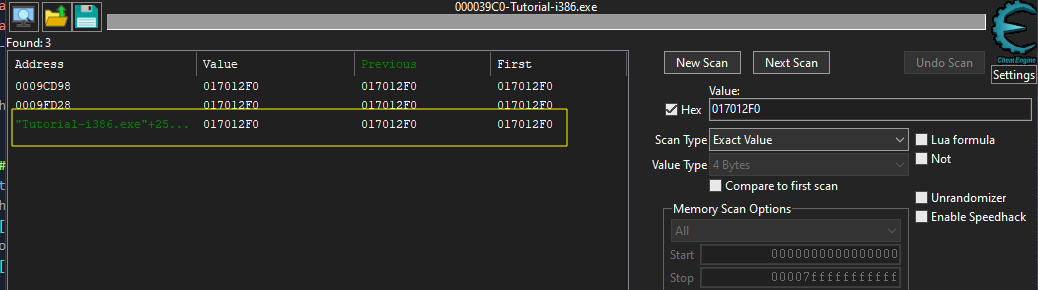

We need to search for a pointer because the address itself will change, the same process before we found the same code mov [edx], eax but the diferences its the square bracket, this means that the value of eax its moved to the address point by the value on edx [edx], not in edx itself. So in order to find the address of the pointer that holds the address of the 4 Bytes with value 987, we will scan for that address. We found an its Green so its Static We add this as a Pointer on Cheat Engine using the add address Manually function

Code Injection

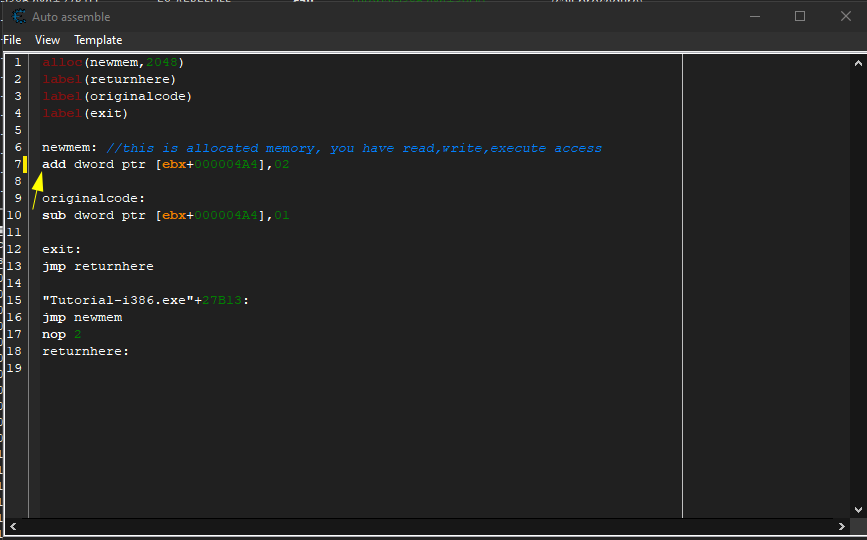

Delete an instruction using an automated script with Code Injection Template. Changing sub for add, we are goint to health besided receive damage. Remove the original code.

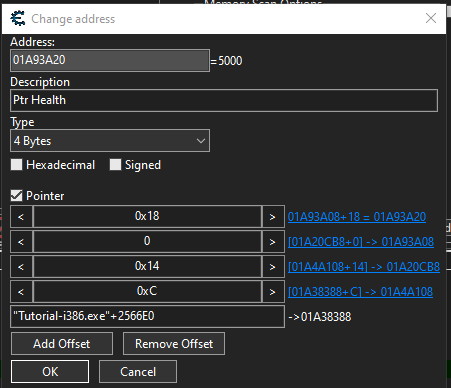

Multilevel Pointers

This its where the magic begin, find each level of the pointer trace back until get the static base address. Like a pointer that point to a pointer and still with 4 of depth

-> = “points to”

• 01AC0620 = Value = 3776

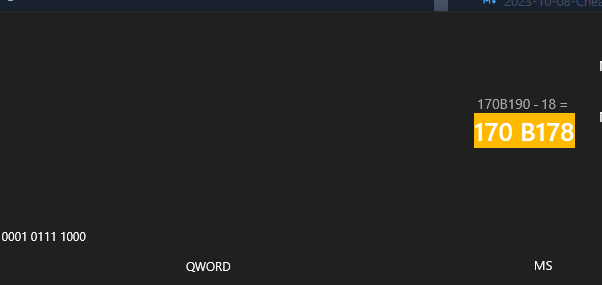

• 01A99BE0 -> 01AC0608 + 0x18 = 01AC0620

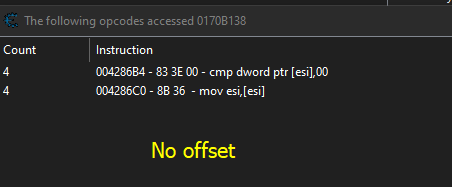

  With Find what access to this address we will find the offset and then de address

• 01AB477C -> 01A99BE0 + 0 = 01A99BE0

• 01A38424 -> 01AB4768 + 0x14 = 01AB477C

• “Tutorial-i386.exe”+2566E0 -> 01A38418 + 0xC = 01A38424

Shared Code

This step will explain how to deal with code that is used for other object of the same type

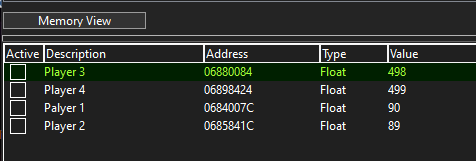

• First its find the base address of the Player 1 object health, take in mind the offset

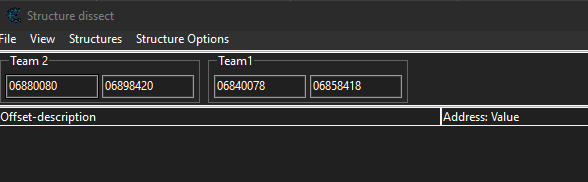

• Open Memory View -> Tools -> Structure dissect and create Two groups with two address both. Fill it with the base address of Player Health

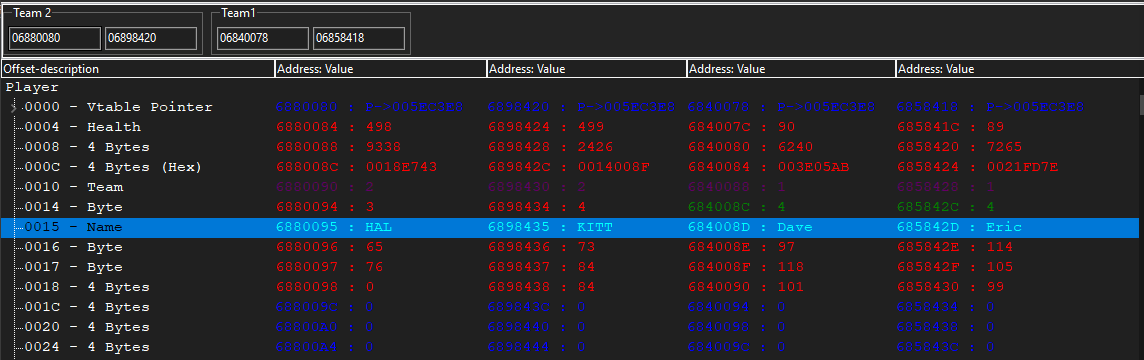

Define a new Structure, and playing around with the values and the information you know form the game you can find Health, Team, Name position

We know where Team reference its placed, so now we inyect a code with Auto assemble when player 1 get attack.

alloc(newmem,2048)
label(returnhere)
label(originalcode)
label(exit)

newmem: //this is allocated memory, you have read,write,execute access
cmp [ebx+10],1
jne originalcode
fldz
jmp originalcode+5

originalcode:
mov [ebx+04],eax
fldz

exit:
jmp returnhere

"Tutorial-i386.exe"+28E89:
jmp newmem
returnhere:

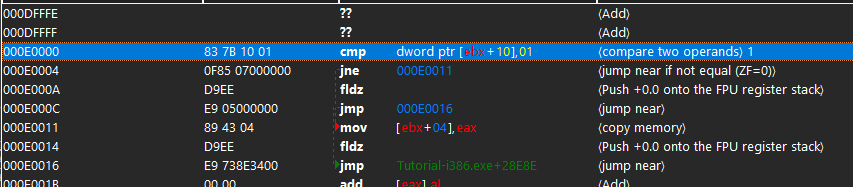

This code compare first if the target its on team 1, if not continue execution making damage. If its on team 1 keep the instructión fldz to keep align the stack and jump to next address after damage get executed
